Sorry, this Orbea Kemen Mid SUV 30 20mph Commuter E-Bike - 2022, Large isn't available.
You'll be the first to know next time this or similar products are available.

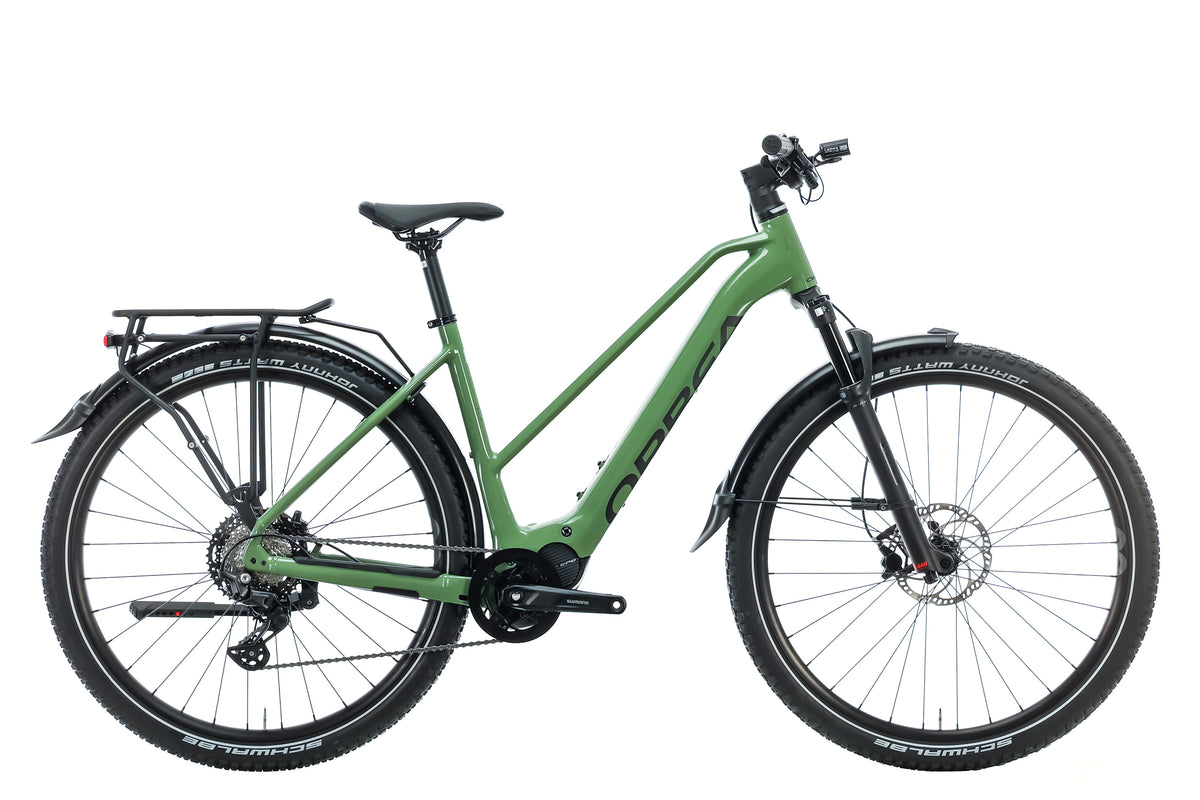

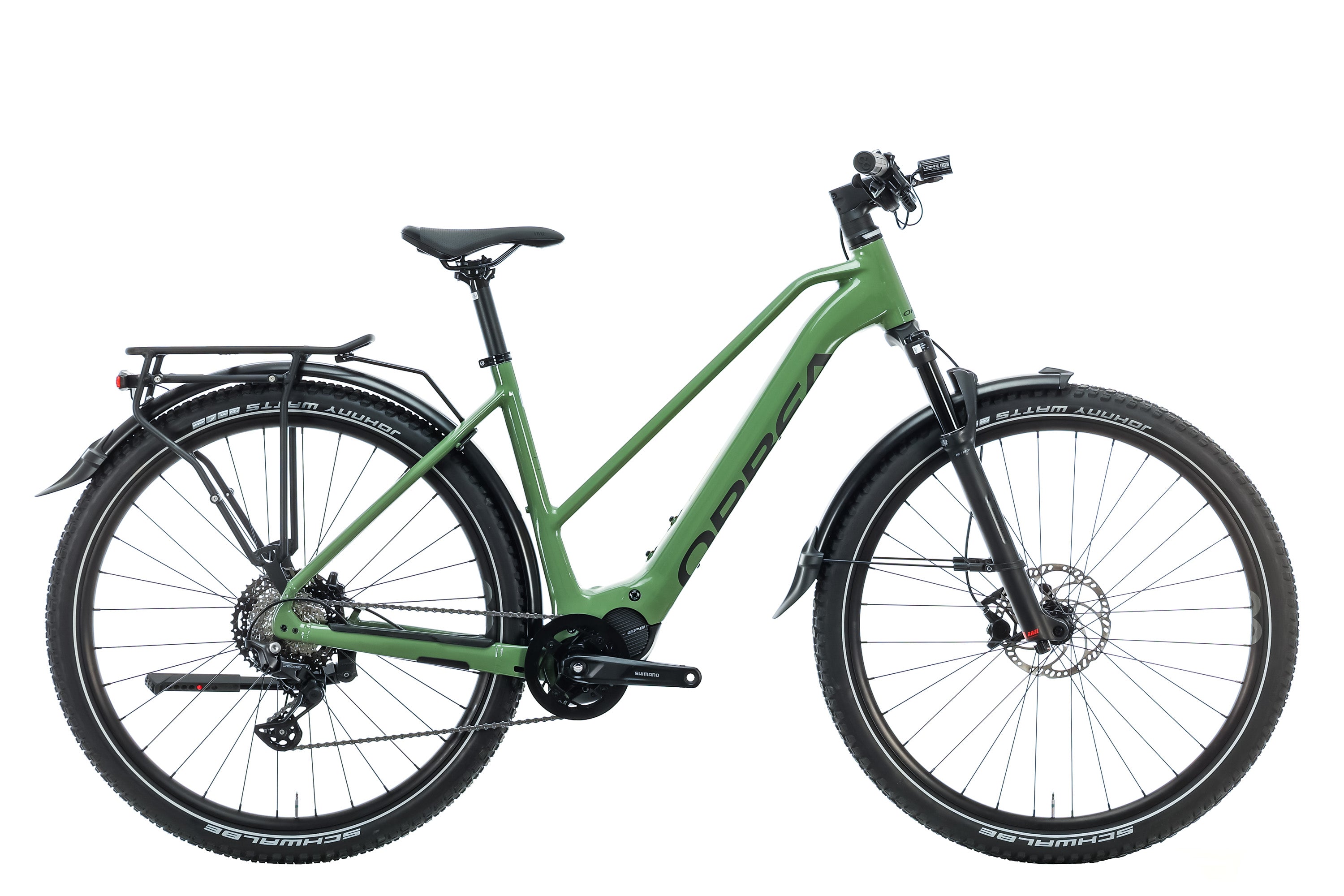

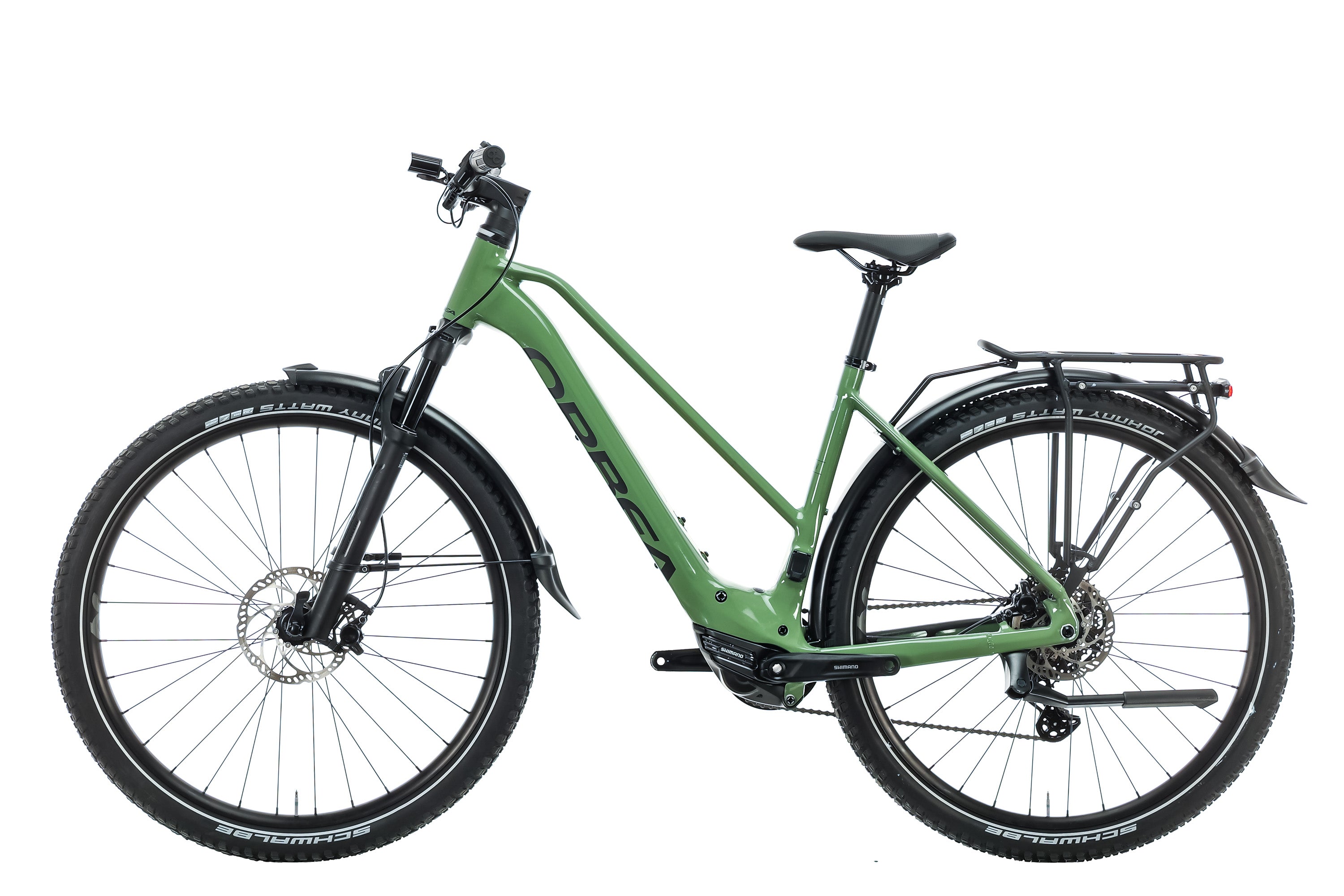

Orbea Kemen Mid SUV 30 20mph Commuter E-Bike - 2022, Large

Item #BMT28355
Condition:
New with Warranty
Fit Range: 5'9" - 6'3"

Trade In
Eye icon Pulsating eye icon that grows and shrinks people are looking at this
Shipping

Our RideFast shipping means this bike gets to you quickly and securely.

Quick Assembly
  • Bikes arrive tuned and mostly pre-assembled
  • Torque tool & video guide included
  • Get riding in 15 minutes
Canadian Customers

Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.

Guaranteed Buyback

We'll happily purchase this bike back from you when you're ready for your next upgrade. A TPC buyback offer is guaranteed for 18 month on all qualifying bikes.

More details More details icon

The SUV of the E-Bike World

Why We Love It
Bigger tires and bigger carrying capacity, the Orbea Kemen SUV is designed to be the.....SUV of the e-bike world. The Kemen is designed with a 100mm mountain bike fork to allow big tires even with large fenders. The SUV model comes with a rear rack built strong enough to hold a kiddo carrier or just a ton of gear. All of this is made easier to cruise the streets with thanks to the smooth assist up to 20mph courtesy of the genius Shimano EP8 85Nm motor and 540Wh battery. If 540Wh of battery isn't up to snuff for you, Orbea offers a 252Wh range extender for a total of 792Wh. For incredible insight to your Shimano EP8 system, be sure to download the E-Tube App to turn your phone into an incredible immersive data center and remote for your Shimano system. If you find yourself staring at the Kemen and wondering why it looks so sleek, it's probably the front cable integration. While many e-bikes feature a cluttered front aesthetic of half a dozen cables twisting everywhere, Orbea has routed the majority through the handlebar and stem for an extremely clean look that we're big fans of. Of course, no e-bike would be complete without a sweet light system and the Kemen is no exception. You're covered with a plenty bright head light and taillight to illuminate the road ahead and keep you safe.
Master Mechanic’s Notes
  • Bike is new and unridden
  • Bike is covered by manufacturers’ warranties
Specifications
Toggle accordion
Details
Year 2022
Brand Orbea
Model Kemen
Size Large
Frame Material Aluminum
Drivetrain Shimano, 1x10 spd
Weight 50 lbs 0 oz
Build
Fork Marzocchi Bomber Z2
Fork Travel 100mm
Brakes Magura MT30, Disc Brakes - Hydraulic
Shifters Shimano Deore M5130, Mechanical
Rear Derailleur Shimano Deore M5130
Bottom Bracket Shell N/A
Crankset Shimano Steps EM600, 36t, 170mm
Cassette Shimano CS-LG600, 11-43t
Chain Shimano
Handlebar OC Alloy, 790mm
Headset Integrated
Stem OC Alloy, 35.0mm x 70mm, 6°
Seatpost Alloy, 31.6mm
Saddle Selle Royal Vivo 1216
Front Axle Spacing 15x110mm (Thru-Axle)
Rear Axle Spacing 12x148mm Boost
Wheelset Orbea OC1 Aluminum Tubeless Ready , Shimano MT410
Front Tire Schwalbe Johnny Watts, 29" x 2.35"
Rear Tire Schwalbe Johnny Watts, 29" x 2.35"
Tire Type Clincher
Tubeless Compatibility Wheels are tubeless compatible but ships with tubes installed
Motor Shimano EP8
Torque 85Nm
Wattage 250w
Battery Orbea Internal 540Wh
Top Speed 20mph
Mileage New
Charger Included Yes
Pedals Sold separately
