Trek Top Fuel Carbon Large Frame - 2020
isn't available.
You'll be the first to know next time this or similar products are available.

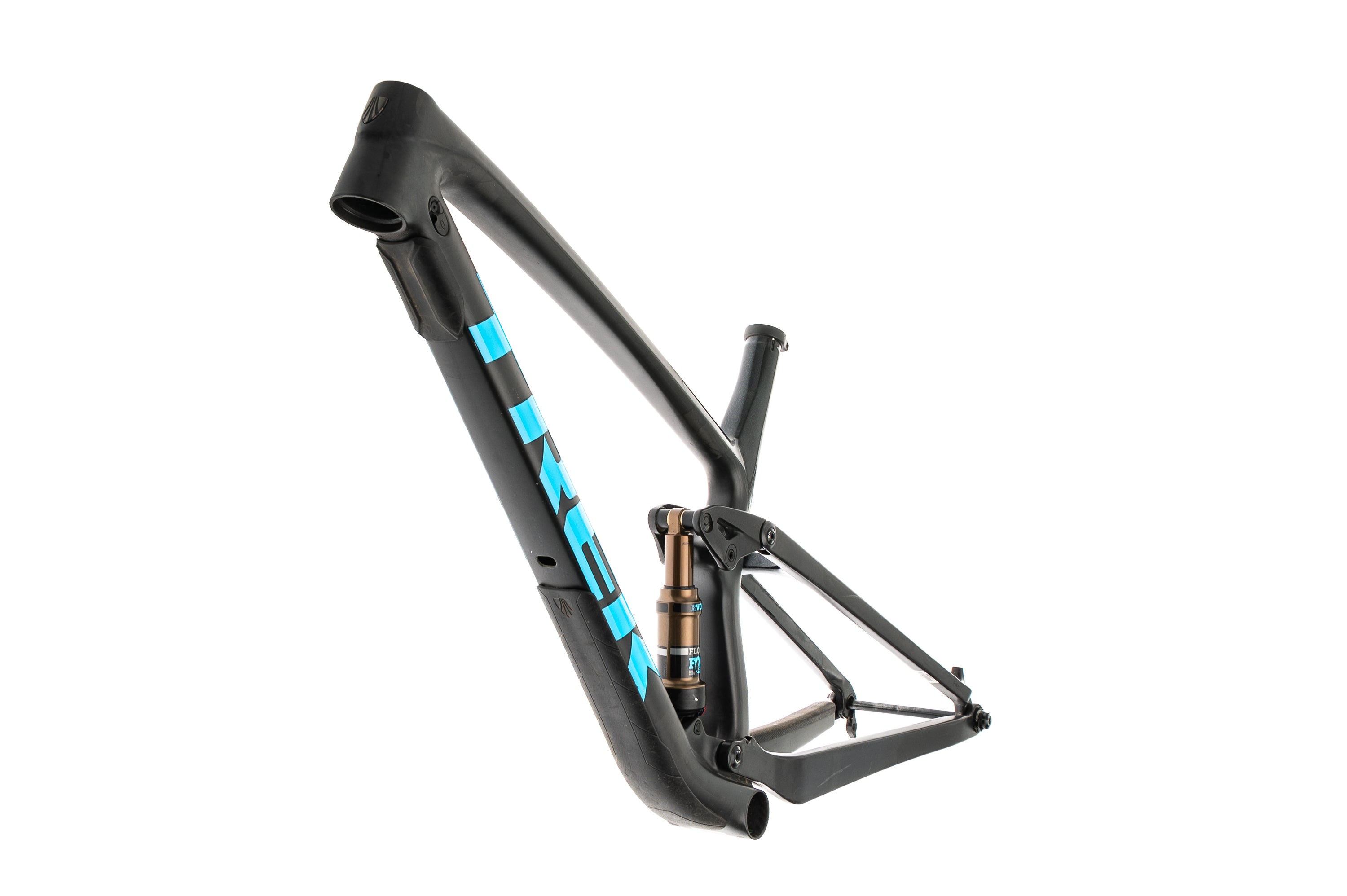

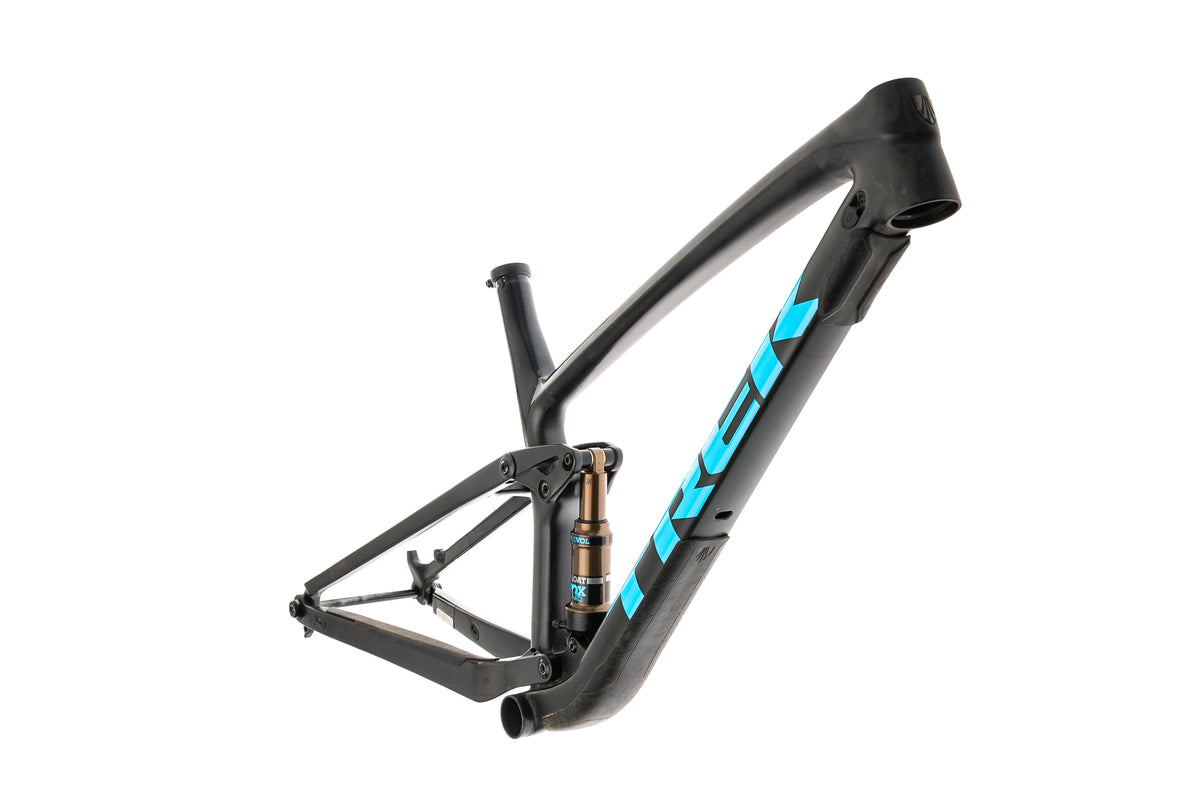

Trek Top Fuel Carbon Large Frame - 2020
Item #FMT11210
Condition:
Pre-Owned
Fit Range: 5'9.7" - 6'2.0"
people are looking at this
Shipping
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
About This Item

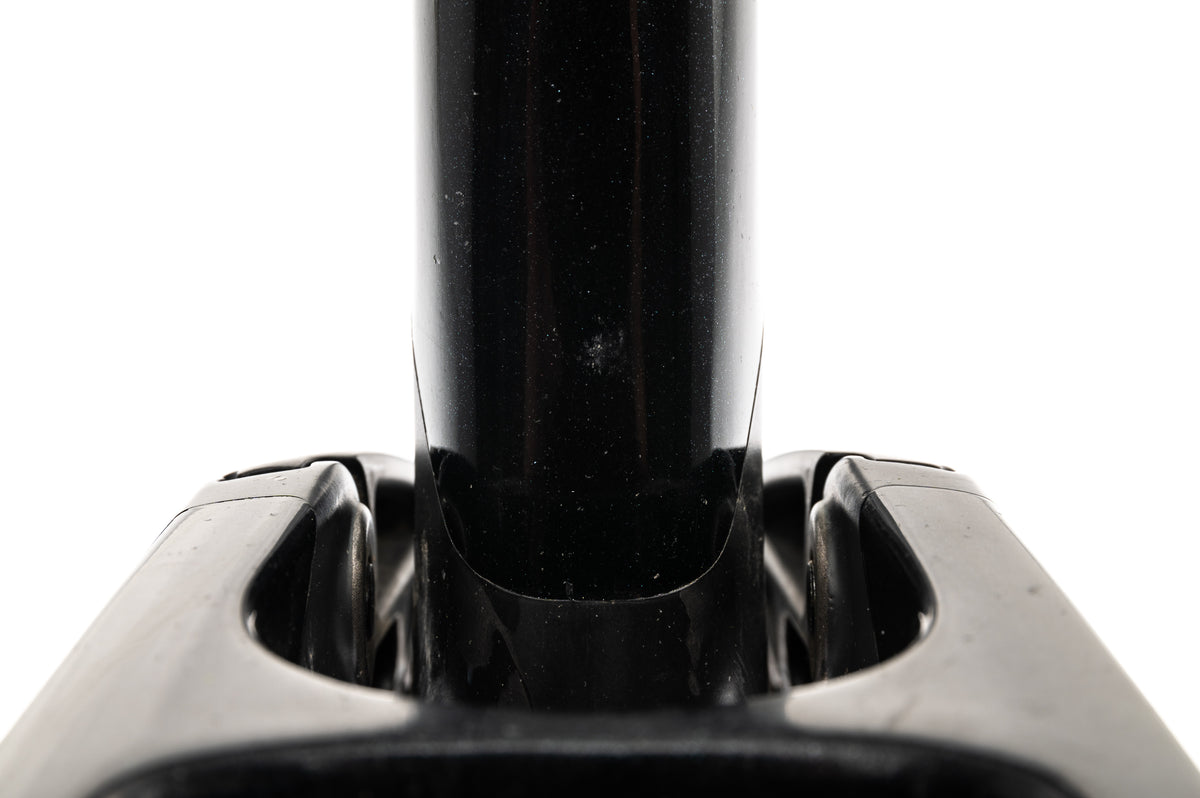

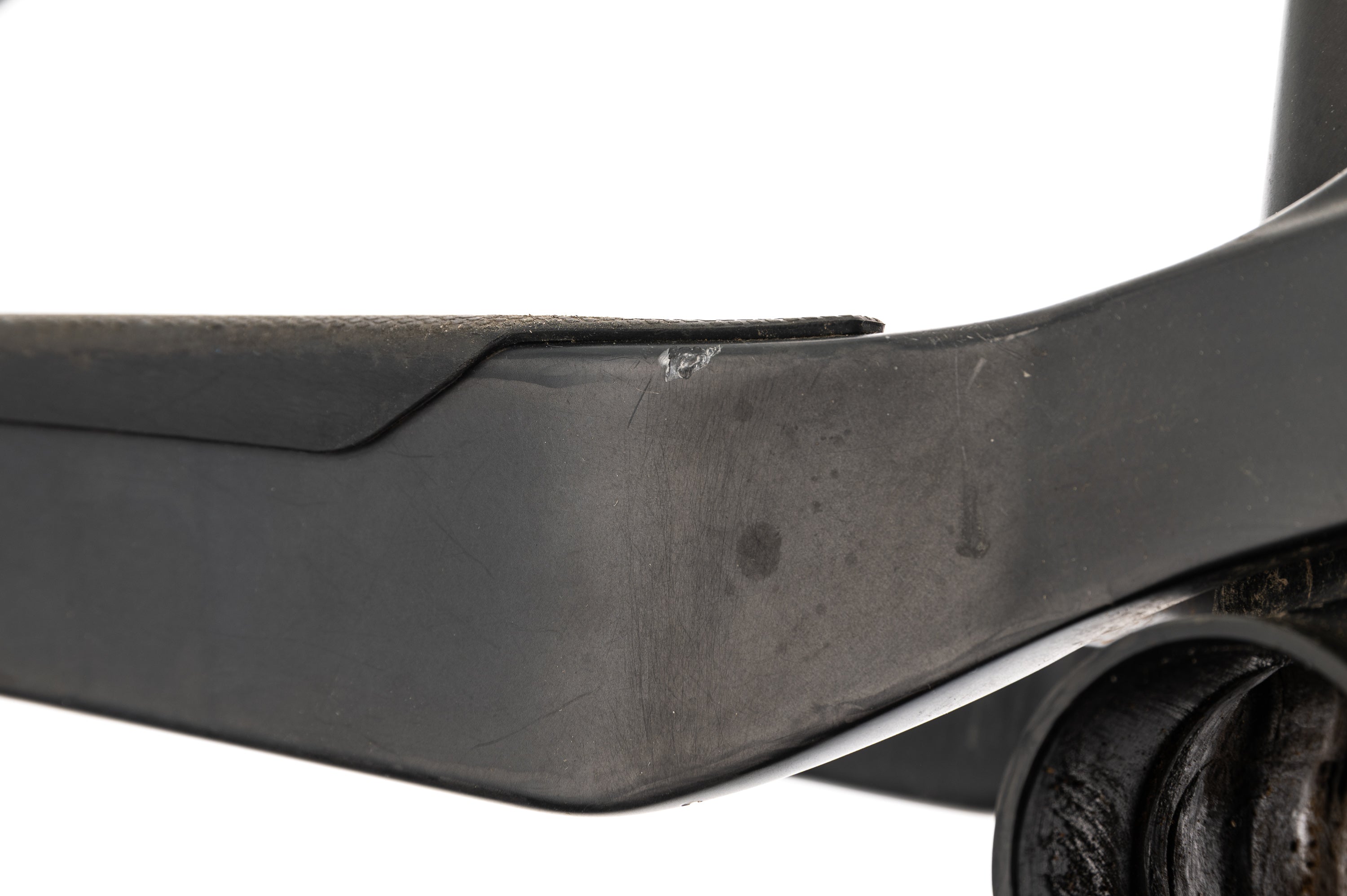

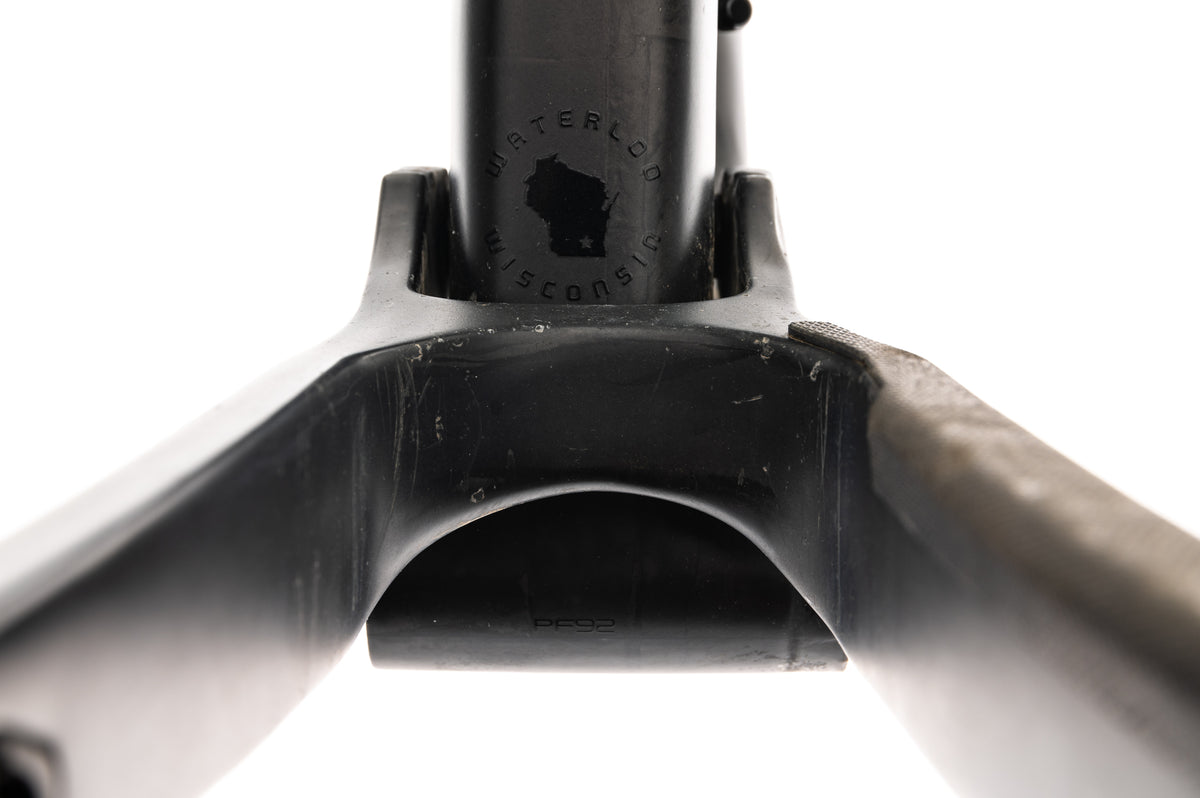

- Mechanic's Comments: - Includes: Frame, rear shock, headset, rear thru axle, & rear derailleur hanger (installed). - Light wear and tear from cable rub, heel rub, chain, etc. - Frame has light to moderate scratches/scuffs. - Tire rub marks to inner seatstays & chainstays.
Specifications
Details
| Year | 2020 |
| Brand | Trek |
| Model | Top Fuel Carbon |
| Size | Large |
| Frame Material | Carbon Fiber / Carbon Fiber |
| Rear Shock | FOX Float DPS Factory Series EVOL LV |
| Rear Shock Travel | 115mm |
| Brake Type | Disc Brakes - Hydraulic |

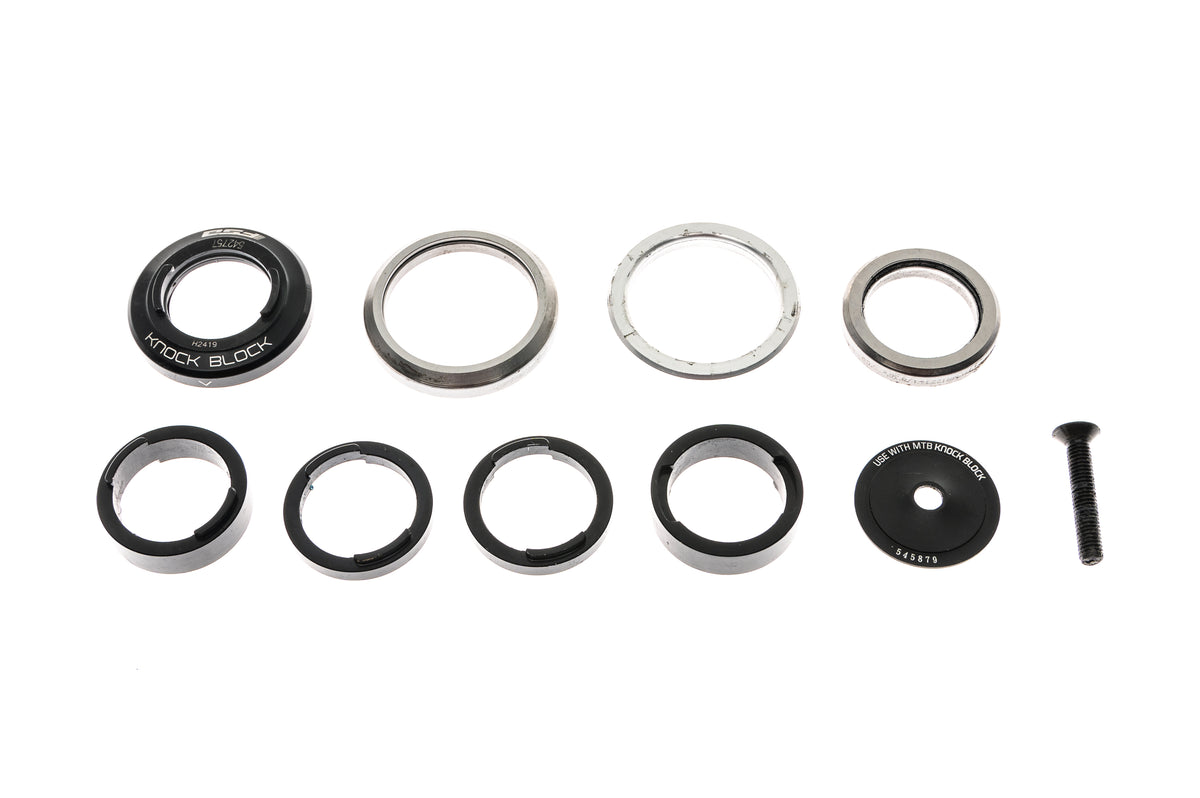

| Headset | Knock Block Integrated w/ Top Cap |
| Bottom Bracket | Not Included, BB92 |
| Wheel Size | 29" |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Yes |
| Rear Axle Spacing | 12x148mm Boost |
| Weight | 5 lbs 5 oz |
| Drivetrain Compatibility | Mechanical/Electronic |
Build
| Rear Shock | FOX Float DPS Factory Series EVOL LV |
| Rear Shock Travel | 115mm |
| Brakes | Disc Brakes - Hydraulic |
| Shifters | Mechanical/Electronic |
| Headset | Knock Block Integrated w/ Top Cap |
| Seatpost | 31.6mm |
| Rear Axle Spacing | 12x148mm Boost |
Geometry
| Fit Range |
5'9.7" - 6'2.0"
|
| A. Effective Top Tube | 630 mm, 632 mm (High, Low) |
| B. Seat Tube | 470 mm |
| C. Seat Tube Angle | 75.5, 75.0 (High, Low) |
| D. Head Tube Angle | 68.0, 67.54 (High, Low) |
| E. Head Tube | 100 mm |
| F. Stack | 599 mm, 603 mm (High, Low) |
| G. Reach | 475 mm, 470 mm (High, Low) |
| H. Standover Height | 751 mm, 745 mm (High, Low) |
| I. Saddle Height Range | N/A |
